ATEX 304 316 LED Explosion Proof Indicator Light | RFQ Sourcing Details
Sealing Jaws · Quote on request
This is a product procurement detail page: check specs, images, category context and related sourcing paths before sending an RFQ.
Product specs
Buyer's Digest
Use this page as a product-first sourcing checkpoint before sending an RFQ. Category: Sealing Jaws. Confirm application fit, capacity, materials, destination, lead time and compliance requirements before comparing suppliers.
Original product description

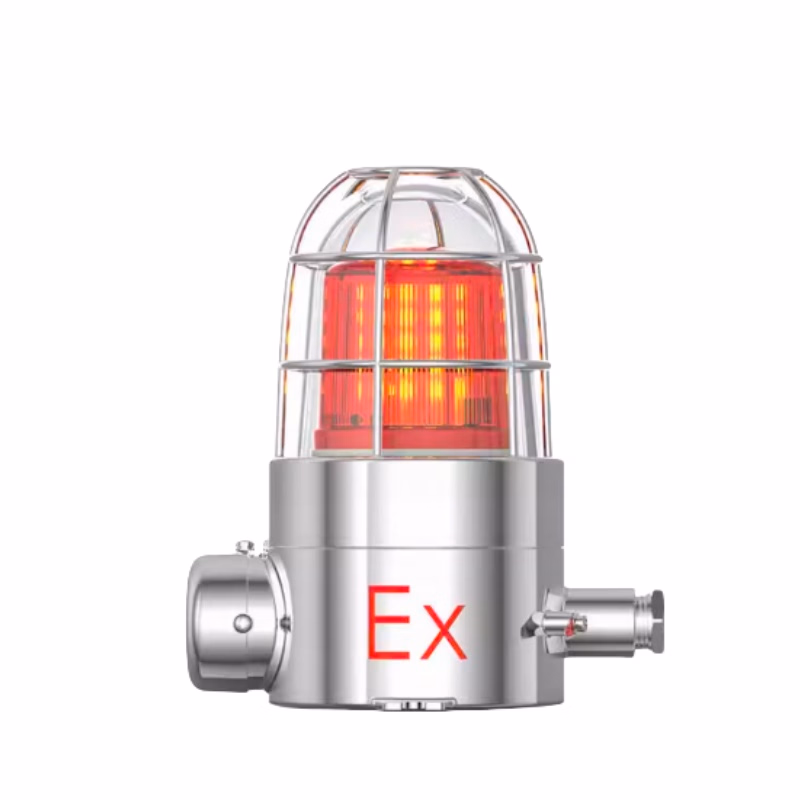

ATEX 304 316 LED Explosion Proof Indicator Light Zone 1 Zone 2 Warning Lamp With 120dB Electronic Sounders Product Parameters ITEM PRODUCT NAME BBJ-SS 304 316 Stainless Steel Explosion-Proof Sound And Light Alarm OTHERS The lamp housing color, light color, style, voltage, and voice announcement content can all be customized.
Please . COMMON RATED POWER: ≤5W INPUT VOLTAGE: DC12V;24V;36V/ AC220V SHELL MATERIAL: SS304;SS316 LIGHTING ANGLE: ≥360 ° IMPLEMENTATION STANDARDS: GB/T;GB/T;GB/T EXPLOSION-PROOF MARKING: Ex db IIC T6.
Gb;Ex tb IIIC T80ºC Db SOUND LEVEL: ≥90~120dBA LIGHTING FREQUENCY: 120~150/min LIGHTING MODE: Rotating Glow LIGHTING COLOR: Red;Green;Blue;Yellow INLET THREAD SPECIFICATIONS: G3/4";M25*1.5mm;3/4 NPT APPLICABLE CABLE OD: Φ8~14mm OPERATING TEMPERATURE: -25°C~+45°C CUSTOMIZATION: Three-color lighting/ Sound IP RATING: IP66 CORROSION RESISTANCE RATING: WF1 * WF2 LAMP DIMENSIONS: DiameterΦ185 x Height 220 (mm) PRODUCT WEIGHT: 2.6 KG CERT ATEX, CE, IP66, IK10, ROHS, ISO9001 FEATURES · The explosion-proof design is flameproof and can be used in environments with gases and dust of the corresponding explosion-proof grade.
· The exterior is welded from stainless steel, with 304 or 316 materials available. · An internal LED light source transmits a warning beam over long distances, with a choice of red, yellow, green, and blue colors. The light operates in a rotating pattern.
· The built-in polycarbonate injection-molded light housing provides high light transmittance and withstands strong impacts. · The highly protective structural seal design, equipped with an aging-resistant silicone rubber gasket, provides excellent protection.
· A built-in high-definition buzzer with a sound level of ≥90-120dBA is available. · All exposed fasteners are stainless steel. · Suitable for both steel pipe and cable wiring.
APPL · Oil & Gas Platforms · Chemical Processing Plants · Grain Silos & Flour Mills · Offshore Drilling Rigs · LNG Stations · Coal Mines & Tunnel Infrastructure · Hazardous Storage Warehouses · Zone 1 and Zone 2 · For temperature groups T1~T6 · For IIA, IIB, IIC explosive gas environments The stainless steel explosion-proof sound and light alarm is a safety warning device designed for use in flammable and explosive hazardous locations.
It integrates a high-volume audible alar
ATEX | Applications and Buyer Notes
ATEX is organized as a sourcing-ready Sealing Jaws reference. The page combines visible product or company data with structured procurement cues so buyers can compare application fit, specifications, quantity, quality requirements and lead-time questions befor
Applications
- Initial shortlist building for related product or supplier options.
- Specification and application fit review before bulk purchasing.
- Category, keyword and detail-page comparison before sending an RFQ.
Key specifications
- Category
- Sealing JawsBased on visible page data; confirm exact value in the RFQ.
- Unit
- setBased on visible page data; confirm exact value in the RFQ.
- Anti-Corrosion Grade
- Wf1/Wf2Based on visible page data; confirm exact value in the RFQ.
- Applicable Cable Od
- Φ8~14mmBased on visible page data; confirm exact value in the RFQ.
- Certification
- CE, RoHS, ATEX,ISOBased on visible page data; confirm exact value in the RFQ.
- Color Temperature
- Warm WhiteBased on visible page data; confirm exact value in the RFQ.
- Emitting Color
- Red;Green;Blue;YellowBased on visible page data; confirm exact value in the RFQ.
- Flash Frequency
- 120~150/MinBased on visible page data; confirm exact value in the RFQ.
Buyer tips
- State quantity range and split-delivery needs before price comparison.
- Add certification, material or inspection standards when they affect acceptance.
- For time-sensitive projects, include target arrival date and destination.
- For special applications, describe operating condition, installation environment and duty cycle.
FAQ
What should buyers confirm first?
Confirm application, specification, quantity, destination and lead-time requirements before comparing offers.
Can buyers inquire when specs are incomplete?
Yes. Add model, material, size, use case and inspection needs in the RFQ to make replies comparable.
How should this listing be evaluated?
Check title, category, specifications and related keywords against the actual sourcing requirement.
