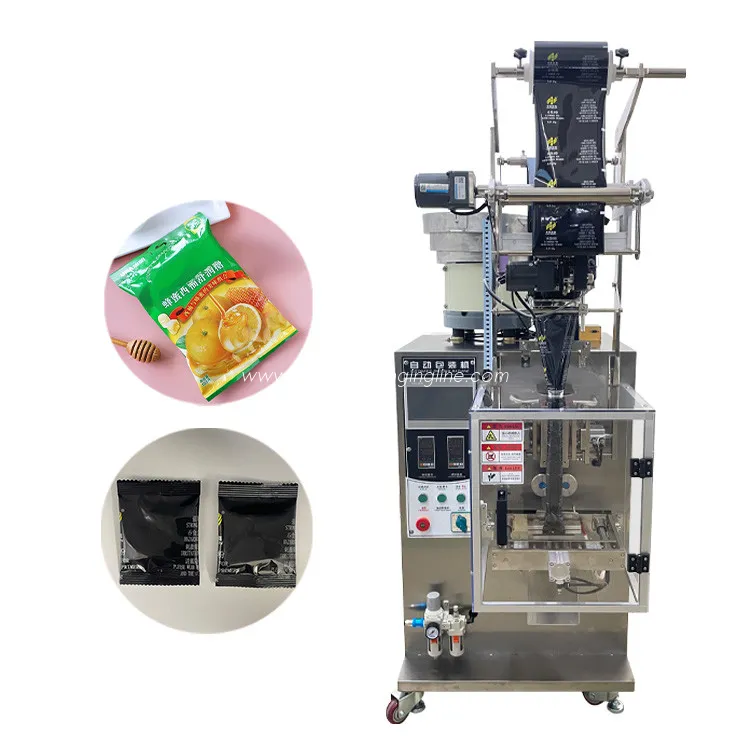

Candy Doypack Bag Packing Machine Solid Vertical | RFQ Sourcing Details

Detail Information Product Description Production Capacity: 30-120 Bottles/min Given Bag: Open Mouth Bag Weight: 25 Kg & 50kg Standard Function: Given Bag Packing Compatible Package: Open-mouth Bag Accuracy: +/- 0.2% Pass Rate: 98% Main Function: Weighing & Packing Sealing Method: Pneumatic / Mechanical Material Type: Granular & Powdery Materials Packing Rate: 30-80 Bags/min Bot andy and granule vertical packaging machine A candy and granule vertical packaging machine is a specialized piece of equipment used in the food packaging industry.

Packaging film width ≤220mm (can be customized according to actual size) Bag making size length 40-150mm, width 40-110mm Sealing type four-side sealing (can be customized back seal, three-side sealing, special-shaped bag, etc.) Sealing texture mesh (can be customized straight grain, pattern, etc.) Power supply 220V/380V/50.

Hz/60. Hz/1350W Machine weight about 140KG Packaging materials composite film/composite paper/polyethylene, nylon/polyethylene, polyester/aluminum foil/polyethylene, tea filter paper, etc.

Machine size Length, width and height 1100*804*1890 MM Cutting knife type flat knife (rounded knife, toothed knife can be customized) Air consumption 0.8.

Mpa 0.4m3/minute This machine is designed to efficiently package various types of candies, granules, snacks, or similar small food items into bags or pouches in a vertical orientation.

The machine typically operates by feeding the candies or granules into a hopper, where they are measured and dispensed into individual packaging units. These units are then formed into bags or pouches, which are sealed to ensure product freshness and integrity.

Key features of a candy and granule vertical packaging machine may include: Vertical Form-Fill-Seal (VFFS) Technology: This technology allows the machine to form bags from a roll of packaging material, fill them with the desired product, and seal them in a continuous vertical process.

Multi-Head Weighing System: Advanced models may incorporate a multi-head weighing system to ensure accurate portioning of candies or granules into each package.

Adjustable Packaging Parameters: Operators can typically adjust parameters such as bag length, filling volume, and sealing temperature to accommodate different product sizes and packaging requirements.

Touchscreen Interface: Many modern vertical packaging machines feature user-friendly touchscreen interfaces for easy operation and monitoring of the packaging process. High-Speed Performance: These machines are often capable of high-speed packaging to meet the demands of large-scale production environments.

Packaging Material Compatibility: They are designed to work with various types of packaging materials, including laminates, polyethylene , and other food-grade films suitable for candy and granule packaging.

Integrated Safety Features: Safety features such as sensors and guards are typically integrated into the machine to prevent accidents and ensure operator safety.

Overall, candy and granule vertical packaging machines offer an efficient and reliable solution for automating the packaging process of small food items, enabling manufacturers to increase productivity and maintain product quality. Tag: automatic bag sealing machine automatic pouch packaging machine
