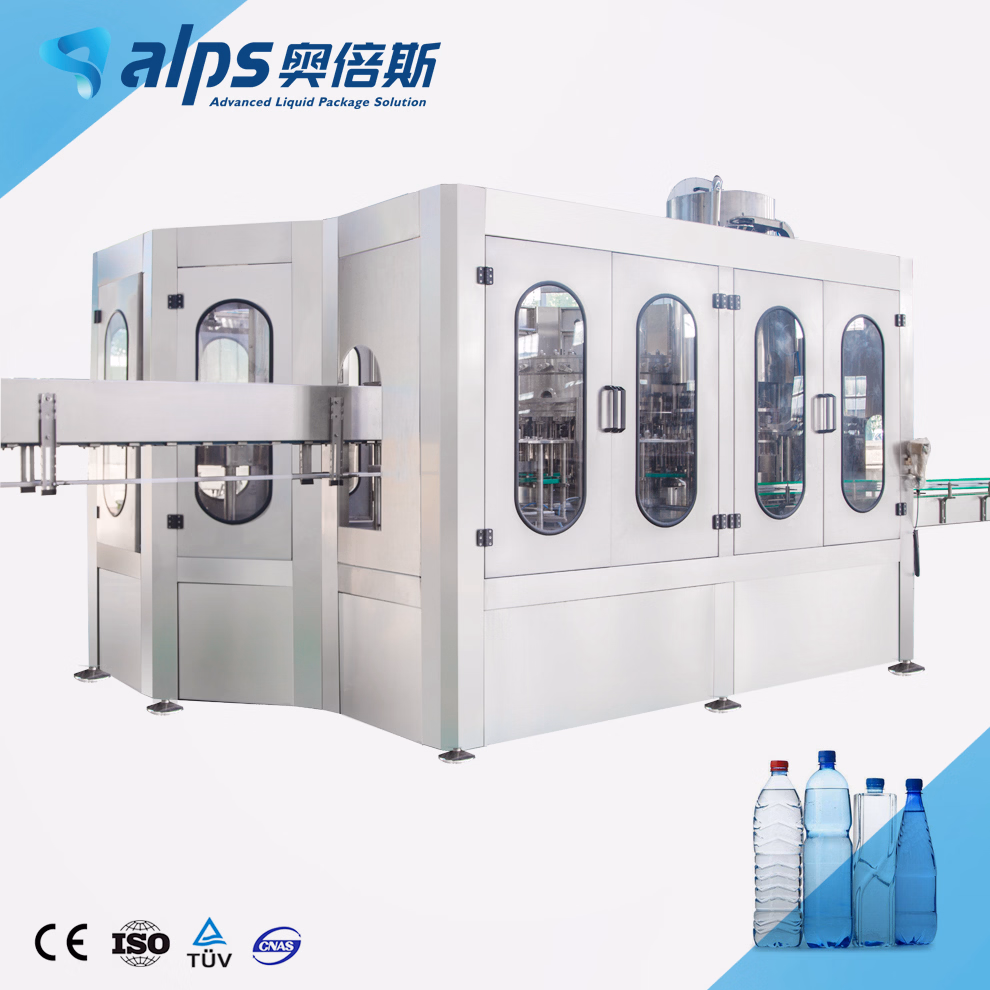

This CGF-series automatic bottling monoblock combines bottle rinsing, water filling and capping in one machine. It is intended for non-carbonated drinking-water production, including mineral, purified and spring water.

The listed bottle range is 250–2,000 ml, with circular and square PET bottle formats described as available. The machine uses atmospheric-pressure gravity filling and PLC-based automatic control.

Listed construction details include SUS304 rotary components, SUS304 filling valves and a stainless-steel bottle-washing clamp. Bottles are transferred by the neck, and format changes require corresponding curved plates, wheels, nylon parts or other changeover components.

A bottle-separating system is added when square bottles are used. Available CGF configurations use multiple rinsing, filling and capping heads.

The source lists nominal outputs from 2,000 bottles per hour up to 18,000 bottles per hour in its model tables, while the broader specification states that made-to-order configurations can extend to 24,000 bottles per hour. Actual output depends on the selected model, bottle size and production conditions.

Listed suitable bottle dimensions for the model range are 50–115 mm in diameter and 160–320 mm in height. Another container specification section lists a maximum bottle diameter of 105 mm and maximum height of 335 mm, so the accepted bottle envelope must be confirmed for the exact configuration.

The stated operating environment is 10–40°C with no dew. Listed electrical supply is 380 V ±5%, three phase, at 50 Hz ±1%. Model-dependent total power ranges from 4.4 to 7.8 kW. Listed compressed-air pressure is 0.3–0.7 MPa, and aseptic water is identified as the washing medium.

A wider line can be configured with water treatment, bottle blowing, air conveying, cap handling, drying, coding, labeling, conveying, shrink wrapping or carton packing, and palletizing equipment.

These are described as parts of a complete plant solution and should not be assumed to be included with the monoblock unless specified in the purchase scope.

Procurement questions to confirm: Ask for the exact CGF model and head configuration;guaranteed output at the required bottle volume;approved bottle drawings and neck finish;change parts needed for every round or square bottle;cap type;filling-level tolerance;product-;utility consumption and connection points;final machine dimensions and weight;line layout;included upstream and downstream equipment;control-component bill of materials;installation and training scope;acceptance-test criteria;spare and wear parts;export packing;and the precise warranty terms for the quoted configuration.
