DHGZ-4 Automatic 4-Head Wine Bottle Filling and C | RFQ Sourcing Details
Liquid Filling Machines · Quote on request
This is a product procurement detail page: check specs, images, category context and related sourcing paths before sending an RFQ.
Product specs
Buyer's Digest
Use this page as a product-first sourcing checkpoint before sending an RFQ. Category: Liquid Filling Machines. Confirm application fit, capacity, materials, destination, lead time and compliance requirements before comparing suppliers.
Original product description
The DHGZ-4 is an automatic wine filling and corking machine configured for linear processing of glass bottles. Its four-head, pressure-filling system is specified for fill volumes from 500 to 1000 ml, with a stated production rate of 300-400 bottles per hour and filling accuracy of ±1%.
An automatic corking function combines filling and closure handling in one listed machine configuration. Operators can set filling volume and filling speed through the PLC and touchscreen interface. The liquid outlet nozzle can be raised or lowered to accommodate different bottle formats.
The machine uses a multi-head valve arrangement, a single-room feed-cylinder structure, capacity-cup dosing, and pneumatic bottle lifting. Listed electrical requirements are 220 V, 50 Hz, with voltage customization available. Power is stated as 2 kW plus 0.8 kW, and working pressure as 0.6-0.8 MPa.
The supplied application list includes wine, liquid alcohol and other alcoholic beverages, as well as oils, potions, fresh milk, oral liquids, cosmetics, hair-care and skincare products, fruit juice, carbonated drinks, mineral water, purified water, and cleaning liquids.
Suitability for any particular liquid should be confirmed against viscosity, foaming behavior, carbonation, hygiene requirements, product- , and closure format before purchase.
The listing identifies non-standard customization as available and states that manual instruction and engineer training are provided before loading. Listed support options include online and video technical support, remote debugging, field-installation assistance, and optional on-site engineer service.
The stated warranty period is one year or 12 months. Procurement note: the source presents two different machine-dimension sets—3400 × 1400 × 2500 mm in the basic specification and 3000 × 1500 × 2200 mm in the parameter section. The listed shipping package is 340 × 140 × 250 cm with a gross weight of 700 kg.
Buyers should obtain an approved technical drawing and final packing specification.
They should also confirm bottle dimensions, neck and cork details, required throughput, liquid characteristics, utilities, product- , cleaning method, guarding, included conveyors, commissioning scope, spare parts, and the final delivery schedule before ordering.
DHGZ-4 | Applications and Buyer Notes
DHGZ-4 is organized as a sourcing-ready Liquid Filling Machines reference. The page combines visible product or company data with structured procurement cues so buyers can compare application fit, specifications, quantity, quality requirements and lead-time qu
Applications
- Initial shortlist building for related product or supplier options.
- Specification and application fit review before bulk purchasing.
- Category, keyword and detail-page comparison before sending an RFQ.
Key specifications
- Category
- Liquid Filling MachinesBased on visible page data; confirm exact value in the RFQ.
- Unit
- setBased on visible page data; confirm exact value in the RFQ.
- Model
- DHGZ-4Based on visible page data; confirm exact value in the RFQ.
- Power
- 2 kW + 0.8 kWBased on visible page data; confirm exact value in the RFQ.
- Voltage
- 220 V, 50 Hz;customization listed as availableBased on visible page data; confirm exact value in the RFQ.
- Container
- Glass bottleBased on visible page data; confirm exact value in the RFQ.
- Configuration
- LinearBased on visible page data; confirm exact value in the RFQ.
- Filling heads
- 4Based on visible page data; confirm exact value in the RFQ.
Buyer tips
- State quantity range and split-delivery needs before price comparison.
- Add certification, material or inspection standards when they affect acceptance.
- For time-sensitive projects, include target arrival date and destination.
- For special applications, describe operating condition, installation environment and duty cycle.
FAQ
What should buyers confirm first?
Confirm application, specification, quantity, destination and lead-time requirements before comparing offers.
Can buyers inquire when specs are incomplete?
Yes. Add model, material, size, use case and inspection needs in the RFQ to make replies comparable.
How should this listing be evaluated?
Check title, category, specifications and related keywords against the actual sourcing requirement.
Source mix: ugc
Key specifications
Product sourcing keywords
These terms come from the title, visible copy and specifications, and link into matching aggregate pages.
Continue from this detail page into sourcing structure
These links connect the detail page back to category hubs, procurement aggregates and knowledge pages so new inventory is not isolated.
This URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 10000bph 500ml Carbonated Soft Drinks Bottling Line For SaleThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 19l 20 Ltr 5 Gallon Mineral Water Filling Bottling Machine Production LineThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 2000bph Soda Drink Sparkling Orange Juice Plastic Bottling Carbonated Water Filling LineThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 2000bph Soft Drink Purified Mineral Small Water Plastic Glass Bottle Filling Labeling Bottling ProduThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 2022 Automatic Plastic Bottle Liquid Concentrated Fruit Juice Making Bottling Filling Production LinThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 220v 380v Cleaning Detergent Capping Bottling Filling Production LineThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 30ml Alcohol Liquid Water Bottling Capping LineThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 30ml Explosion Proof Alcohol Liquid Beverage Bottling Capping LineThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Aluminum Alloy Stainless Steel Machined Accessories For Packaging Machinery Cnc Machining LaserThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Cartoning And End Of Line categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path CompanyThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Filling Machine Manufacturers sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Filling And Bottling Lines categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.

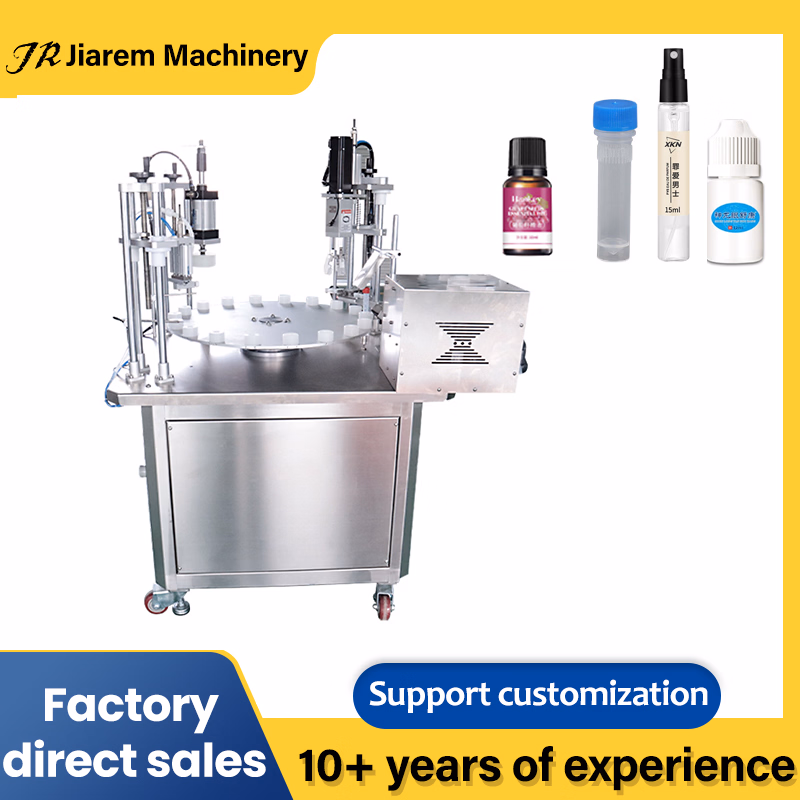

Automatic Rotary Single-Head Small-Bottle Liquid Filling and Sealing Machine, 1–50 mLRequest Quote
YGZ Automatic 5–100 mL Bottle Liquid Filling, Plugging and Capping MachineRequest Quote
YT4T Automatic Four-Head 100–1000 mL Liquid Bottle Filling MachineRequest Quote

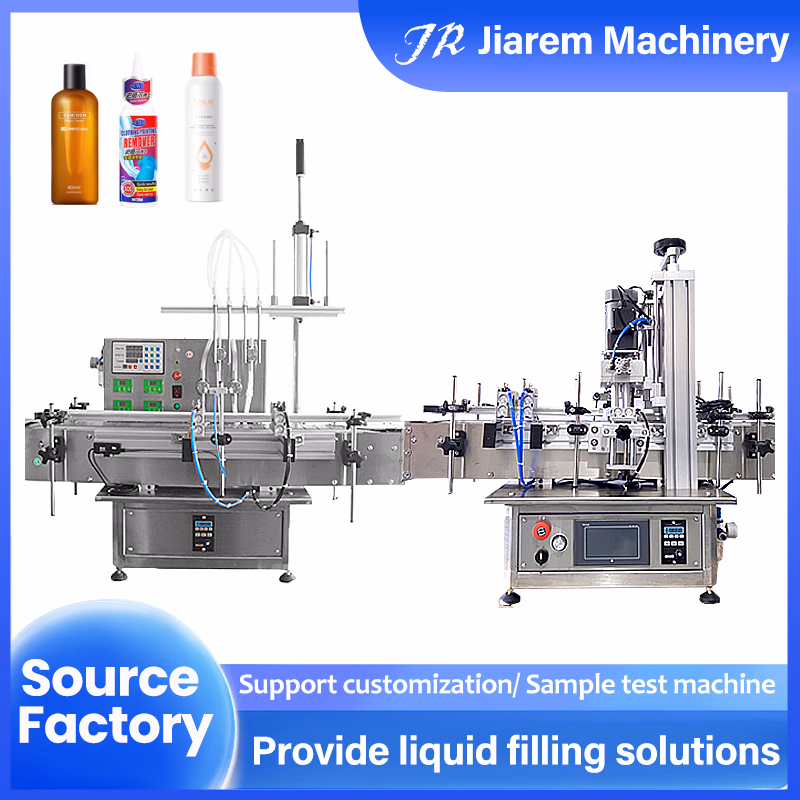

GZJR-ZCG04Q Automatic Multi-Head Bottle Liquid Filling Machine, 5–300 mLRequest Quote
