GS-16 Automatic Bottle Counting, Filling, Capping | RFQ Sourcing Details

The GS-16 is an automatic bottling line configured for counted solid products, including tablets, caplets, hard capsules, soft capsules and gummies. It is intended for bottle-based packaging operations in the pharmaceutical, food, cosmetic and chemical industries.

The listed machine material is stainless steel, and bottle formats can be customized within the stated equipment ranges.

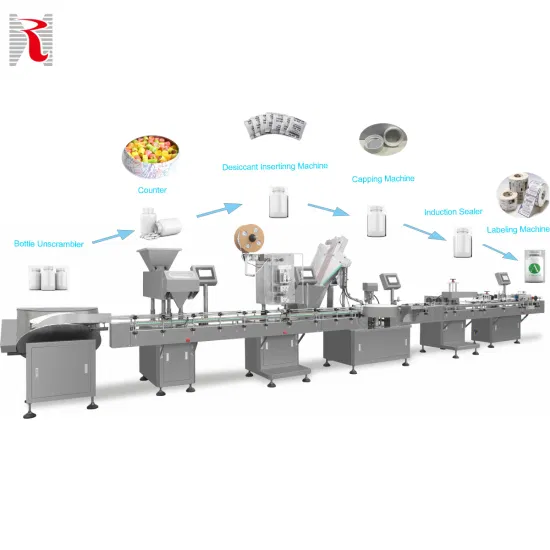

The line includes a bottle feeding machine, a 16-channel capsule and tablet counting/filling machine, a desiccant filling machine, a high-speed capping machine, an induction sealing machine, a labeling machine and a bottle collecting turntable.

The bottle feeder sorts round plastic bottles and transfers them to the conveyor. The counter uses dual conveyor tracks and is rated for a maximum counting and filling output of 5,200 pieces per minute, with an error rate of no more than 1‰.

Its listed applicable capsule range is size 0 through size 5 for hard or soft capsules. Each downstream module has its own stated operating range. Desiccant insertion is listed at 40–70 bottles per minute. Capping is listed at 50–160 bottles per minute.

Induction sealing is listed at 30–200 bottles per minute, while labeling is listed at 50–200 bottles per minute. The collecting turntable is rated for 20–100 bottles per minute. These are individual module ratings and should not be interpreted as a guaranteed output for the complete integrated line.

Bottle and closure ranges vary by module. The counting machine lists bottle diameters of 30–70 mm and bottle heights of 50–200 mm, both customizable. The capper lists customizable bottle diameters, bottle heights and cap diameters.

The labeling unit is designed for cylindrical containers with listed diameters of 30–120 mm, with customization available. Optional electrical configurations are stated for several modules, including 220 V or 110 V and 50–60 Hz depending on the machine.

For procurement, buyers should confirm the complete line layout and final footprint, because the source provides dimensions for individual machines rather than one assembled-line dimension.

A sample set of the intended bottles, caps, labels, induction foils, desiccant coils and every product format should be evaluated against the proposed configuration.

Buyers should also confirm the required change parts, validated output at the intended count per bottle, counting accuracy for each product, utility connections, conveyor integration and the exact electrical configuration. The listed warranty is one year, and CE certification is stated.

Before ordering, request confirmation of the certification scope, included documentation, acceptance-test criteria, installation and commissioning responsibilities, operator training, spare and wear parts, cleaning procedures, delivery schedule and after-sales support.

These procurement details are not defined in the available product facts and should be agreed in the final technical specification.
