Hx-400 Pneumatic Sealing Machine Is Suitable for | RFQ Sourcing Details
Packaging Film · Quote on request
This is a product procurement detail page: check specs, images, category context and related sourcing paths before sending an RFQ.
Product specs
Buyer's Digest
Use this page as a product-first sourcing checkpoint before sending an RFQ. Category: Packaging Film. Confirm application fit, capacity, materials, destination, lead time and compliance requirements before comparing suppliers.
Original product description

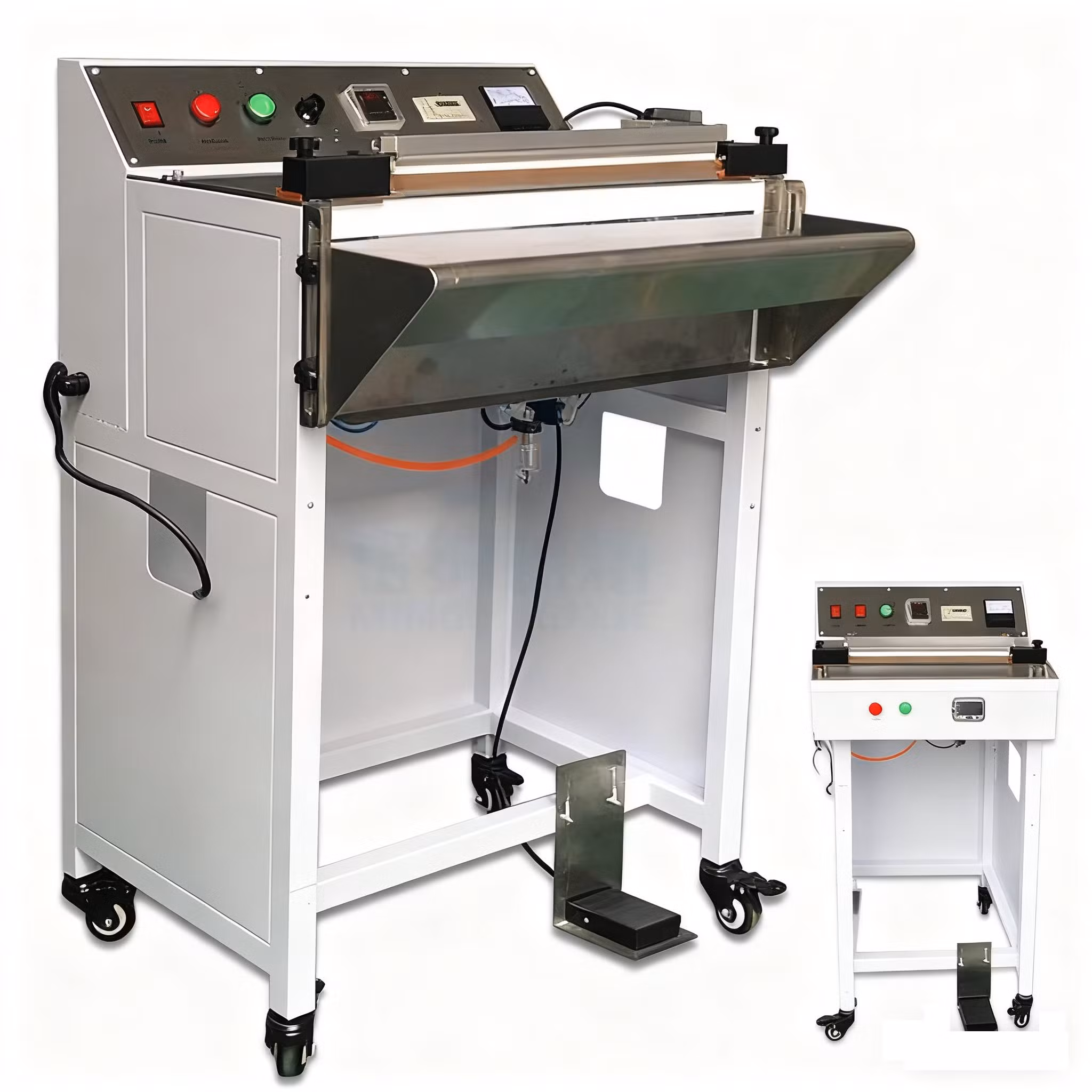

Pneumatic sealing machine is a packaging machinery powered by compressed air and combined with electrical control. It is mainly used for moisture-proof sealing and transportation packaging of thermoplastic materials such as aluminum-plastic composite film and paper plastic composite film.
Core functions: Adopting a gantry structure, it supports both bagged and rolled packaging forms, with a maximum pressure of 10000N. The sealing length can be extended to 8000mm and the width is 8-15mm.
Equipped with a double-sided heating system, it can process four layers of composite film materials with a cumulative thickness of 2mm.
Applicable scenarios: Widely used in industries such as chemical, food, and feed, it achieves compression through cylinder driven heating components and built-in cooling systems to solve waste heat problems.
During operation, it can be connected to a 220V power supply and a 0.4-0.6MPa gas source, equipped with an emergency cut-off switch to ensure safety.
Operation characteristics: Support semi-automatic operation with manual or foot switch control, adjustable sealing time (1-3 seconds) according to the thickness of the film material, suitable for thermoplastic packaging containers of various shapes such as straight lines and circles.
Product Parameters Model HX-400 Pneumatic sealing machine Body dimensions L600*570*850mm seal dimensions L400mm Sealing line width 0.3 Speed 10-30pcs/min Adjustable current 18V,24V,30V,36V,48V,60V sealing time 0.01-0.5 seconds adjustable Sealing cylinder Precision Mini Cylinder 32 * 50 Double Cylinder power supply 220V 50HZ heating power 1000W load capacity 35KG Body material The rack is made of 30 * 30 * 1.2mm square tubes;The body is made of 1.0t cold steel plate folded into shape, and the surface is treated with baking paint stage floorboard Cut into 3.0mm stainless steel plate Detailed Photos Packaging effect Cooperation process After Sales Service After-sales worry free source manufacturers In order to provide customers with perfect and thoughtful service, free customers from worries.
Our company has developed a perfect after-sales service system and effective after-sales service measures, and opened a special after-sales service hotline to provide users with satisfactory questions and technical support;And has a after-sales service department, regular return visits to customers. The c
