Original product description
. . Model NO.

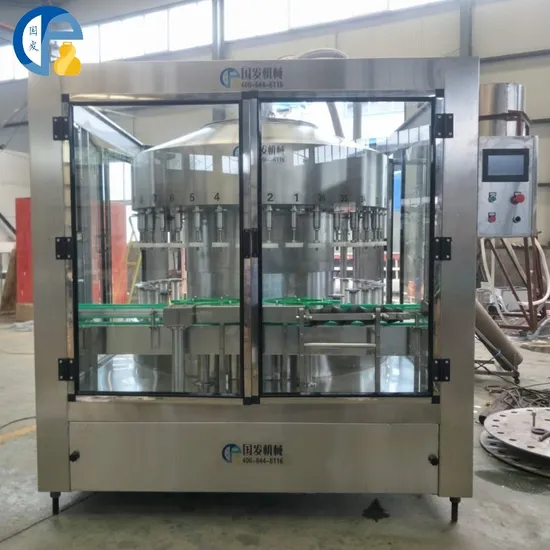

CGFR18186 Material Type Liquid Filling Valve Head Multi-Head Feed Cylinder Structure Multi-Room Feeding Dosing Device Surface Type Filling Principle Pressure Packaging Container Lifting Structure Chute Lifting Structure Rotary Packaging Bottle Packaging Material Plastic Capacity bph@500ml Pet Bottle 350ml-1500ml Touch Screen Mitsubishi(Japan)/Willen(Taiwan) PLC Mitsubishi(Japan) Electronic Control Keys Mitsubishi(Japan)/Willen(Taiwan) Transport Package Stand Wooden Specification ISO90001, CE Trademark BERLINSHUAN Origin Zhangjiagang City Jiangsu Province, China HS Code Production Capacity 120 Sets/Year CGFR series fully automatic rinsing, filling and rotary capping combined machine.whose main technique was imported from Italy, can realize to asepsis filling.Because it equipped with constant temperature controlling system.
It can apply to fill hot frult juice. tea and other beveerage into thermal proof PET bottle by changing few parts.
The complete set of machine is more advanced in technique, smaller in space occupied, more compact in structure, it is suitable for normal temperature filling or hot filling PET bottled no gas contained bebergaes (Mineral water,purified water,distilled water, fruit juie, tea and so on).as well as washing, filling and sealing other liquid, such as vinegar, It achieves 1990"s international advanced level, It is the best choice of taking place of imported one.
Main Technical parameters: Product Name Juice/Tea beverage/ drink hot filling machine Model CGFR18186 Heads of washing, filling , sealing 18-18-6 Production capacity(bottle/hour) BPH (500ml) Suitable bottle diameter(mm) φ=50-100 H=150-350MM, 250-1500ml Spraying pressure 2~3 Mpa Motor power Main motor 4.5kw Overall dimension(Lx.
WxH) 2400x2100x2250mm Weight 3500kg Touch Screen Mitsubishi(Japan)/Willen(Taiwan)/Siemens(Germany) PLC Mitsubishi(Japan) Transducer Mitsubishi(Japan)/Siemens(Germany) Solenoid Valve Festo (Germany) g machine: 1.
The juice filling plant adopts block bottle-neck hanging work state design,and be adopt filling valve rise-drop design. 2. The design of this juice filling machine is scientific and reasonable, its apperance is beautiful, its operation and maintenance is convenient. 3.
The machine main motor, reducer, mostly axletree, pressurize parts and electricity ware element, gas drive element etc are adopt famous international manufacturer products. 4. The automation is high. It is good equipment for choosing hot drink filling machine. 5.
It's osculant the drink material parts are adopt the SUS304 stainless steel. 6. It's be satisfy for 95°C hereinafter hot filling technology demand. 7. It's adpot person-machine interface touch-screen, PLC,transducer etc advanced control technology. 8.
The 3-in-1 juice filling plant integrates washing, filling,capping together. 9. The series equipment is used in hot filling and sealing of green tea, black tea, wulong tea and fruit juice drink Zhangjiagang Berlinshuan Machinery Co., Ltd.
